» Componente electronice » Circuite integrate

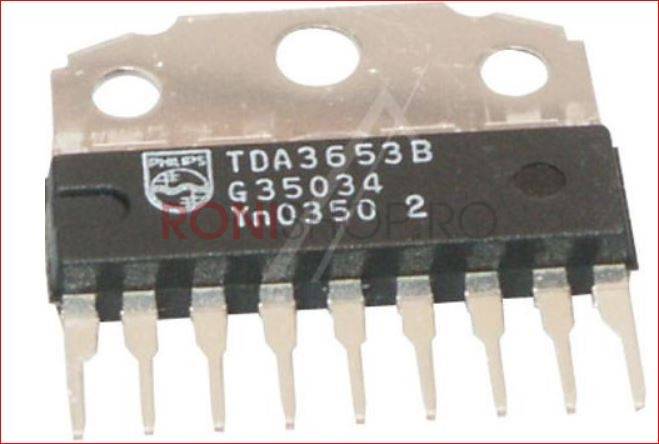

TDA3653B

Cod produs: 00004022

Pret: 15.00 Lei

In stoc

Cod produs 00004022 CI079

vert.defl.&guard 10-40v

Vertical deflection and guard circuit

PARAMETER SYMBOL MIN. TYP. MAX. UNIT

Supply (note 1)

Supply voltage range

pin 9 VP = V9-4 10 - 40 V

pin 6 V6-4 - - 60 V

Output (pin 5)

Peak output voltage during flyback V5-4M - - 60 V

Output current I5(p-p) - 1.2 1.5 A

Operating junction temperature range Tj -25 - +150 °C

Thermal resistance junction to mounting base

(SOT110B) Rth j-mb - 10 - K/W

(SOT131) Rth j-mb - 3.5 - K/W
